D4184 Mosfet Opto Module

D4184 Mosfet Opto Module

SKU: MOD-D4184 • Brand: Unknown • Type: Development modules

Buy the Module

Overview​

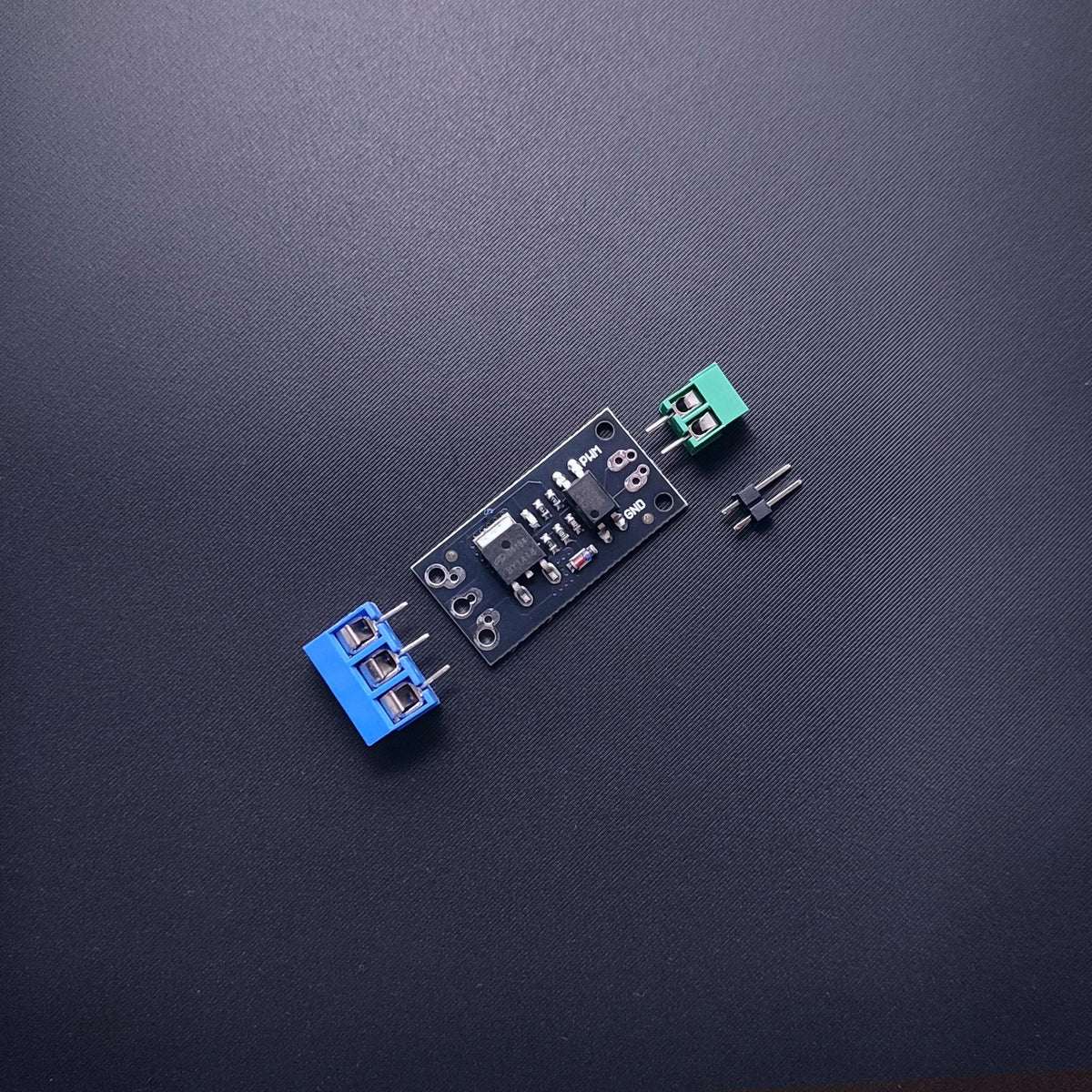

The D4184 Mosfet Opto Module is an inexpensive prototype module used for safer switching of higher current and voltage outputs. It features an optocoupler for isolation and a MOSFET for switching, making it ideal for controlling motors, LEDs, or other high-power devices from microcontrollers or other low-voltage control signals.

Highlights​

  • Inexpensive
  • Quick to setup
  • Driver safety

Pinout Diagram​

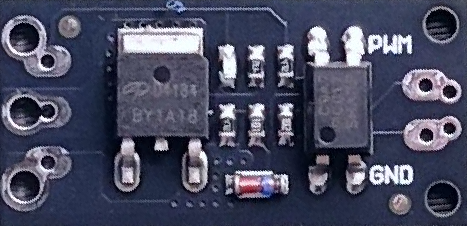

D4184 Module Pinout

D4184 Schematic Pinout

Getting Started​

Assembly requires soldering (Difficulty:Easy)
