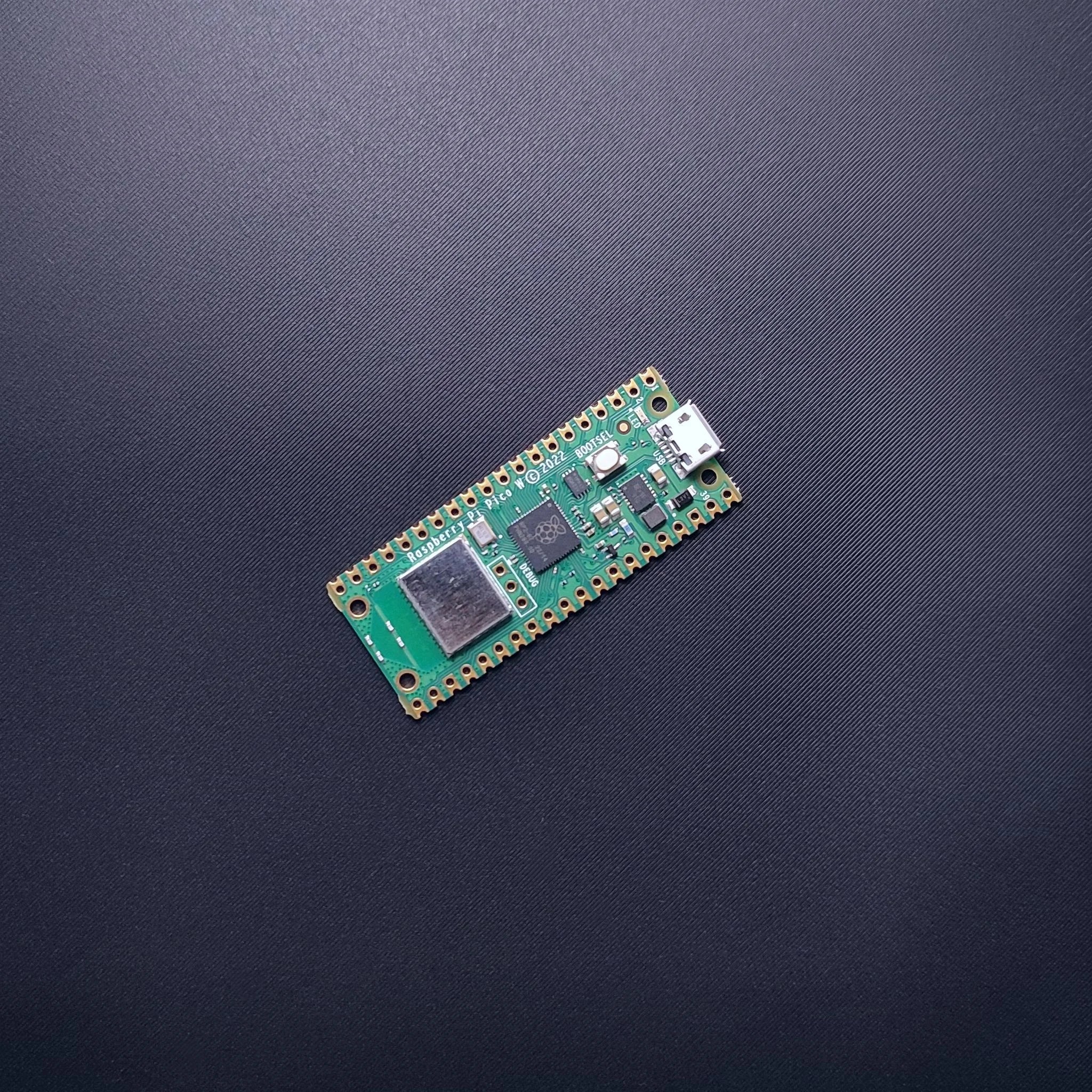

Raspberry Pi Pico W

SKU: DEV-RPI-PICO-W • Brand: Raspberry Pi • Type: Microcontroller Board

Highlights

Dual-core RP2040 @ 133 MHz
2.4 GHz Wi-Fi (Infineon CYW43439)
26x multi-function GPIO
PIO state machines for custom protocols
Works with MicroPython
A compact version of Python for microcontrollers like the ESP32 and Raspberry Pi Pico. It lets you script directly on embedded hardware.
, C/C++, and Rust

Field	Value
Model	Pico W
MCU	RP2040 dual-core Arm Cortex-M0+ @ 133 MHz
RAM / Flash	264 KB SRAM / 2 MB QSPI Flash
Wireless	2.4 GHz Wi-Fi (802.11n)
GPIO	26 pins (I²C Inter-Integrated Circuit - a two-wire communication protocol (SDA, SCL) for sensors and peripherals. , SPI, UART Universal Asynchronous Receiver-Transmitter - a simple serial communication interface between microcontrollers and computers. , PWM Pulse Width Modulation - controls average power by switching rapidly. The duty cycle determines the effective output. , ADC Analog-to-Digital Converter - converts analog voltages into digital values that microcontrollers can read. )
USB	Micro-USB (device only)
Supply Voltage	5 V USB or 1.8-5.5 V VSYS
Dimensions	51 x 21 mm
Certifications	CE, FCC, RoHS
HS Code	8471500000

Raspberry Pi Pico W pinout

Pinout image courtesy of the Raspberry Pi Foundation. Licensed under CC BY-ND 4.0. Source

# MicroPython blink example
from machine import Pin, sleep
led = Pin("LED", Pin.OUT)
while True:
    led.toggle()
    sleep(0.5)
